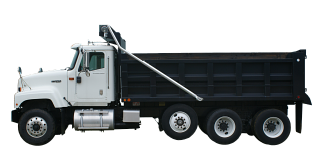

Contractor Dumps - Heavy Duty









HEAVY DUTY CONTRACTOR DUMP SPECIFICATIONS:
CLASS H


Main Frame Assembly: 4" Structural Channel Crossmembers on 12" Centers and 7" Structural Longsills. Crossmembers are Gusseted and Welded to Longsills.

Floor: 3/16 - One Piece Steel Floor with 3" Seamless Radius Corners

Sides: One Piece Formed 10 Gauge with no Welded Seams. Formed 10 Gauge Vertical and Horizontal Bracing. 4x4 Box Top Rail with 8" Board Gussets.

Tailgate: 2 Way - 9 Panel - Manuel - Constructed with 3/16 Plate, includes Boxed Top Rail and Lower Sloping Material Deflector.

Front Wall and Cab Protector: Formed 10 Gauge and Full Width Angle Reinforcement.

Hoist for HEAVY Duty Contractor Dumps:

AA - 63107
Front Mount Telescopic Hoist
(1) 6" Muncie Cylinder - 3 Stage - 107" Stroke
30 Gallon Oil Tank
Muncie C-102 Direct Mount Pump
50 - 55 Degree Dumping Angle

AA - 63120
Front Mount Telescopic Hoist
(1) 6" Muncie Cylinder - 3 Stage - 120" Stroke
30 Gallon Oil Tank
Muncie C-102 Direct Mount Pump
50 - 55 Degree Dumping Angle

AA - 74135
Front Mount Telescopic Hoist
(1) 7" Muncie Cylinder - 4 Stage - 135" Stroke
30 Gallon Oil Tank
Muncie C-102 Direct Mount Pump
50 - 55 Degree Dumping Angle

AA - 74156
Front Mount Telescopic Hoist
(1) 7" Muncie Cylinder - 4 Stage - 156" Stroke
30 Gallon Oil Tank
Muncie C-102 Direct Mount Pump
50 - 55 Degree Dumping Angle



Most Popular Options

Board Holders
1/2 Cab Shield
PTO Driven Dump / In-Cab Controls
Underbody Scissor Hoist
Twin Telescopic Cylinders
Front Mount Telescopic Cylinder
Receiver Hitch
Multi-Hitch Pintle Ball Combo
15 Ton Stationary Pintle Hitch
25 Ton Spring Loaded Hitch
Lift-Axles
Glad Hands
RV (7- Flat Pin) Plug
7-Pin (Round Pin) Plug
6-Pin Plug
Under-Body Toolboxes (Multiple Sizes)
Custom Basket Storage
Standard 2-Way Tailgate
3-Way Tailgate
Sloping Tailgate
Spreader Apron
Tarps (Electric / Manual Multiple Styles)
