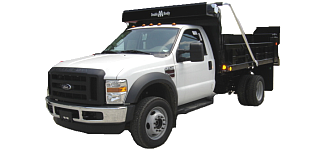

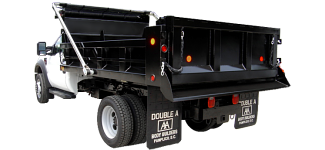

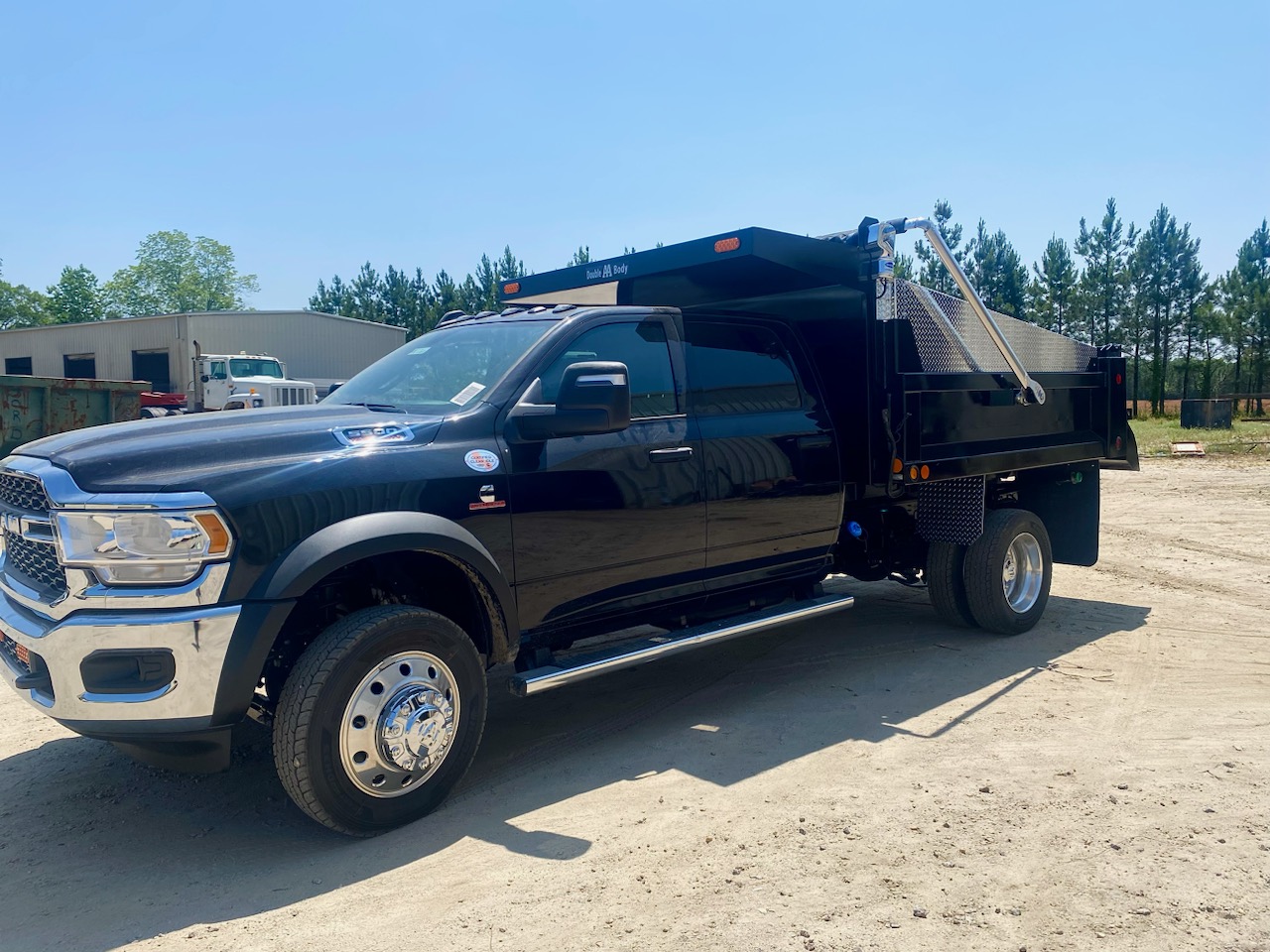

Contractor Dumps - Light Duty









Light Duty Contractor Dumps Specifications:
Class C-E

Main Frame Assembly: 4" Structural Channel Crossmembers on 12" Centers and 7" Structural Longsills. Crossmembers are Gusseted and Welded to Longsills.

Floor: 3/16 - One Piece Steel Floor with 3" Seamless Radius Corners

Sides: One Piece Formed 10 Gauge with no Welded Seams. Formed 10 Gauge Post. 4x4 Box Top Rail with 8" Board Gussets.

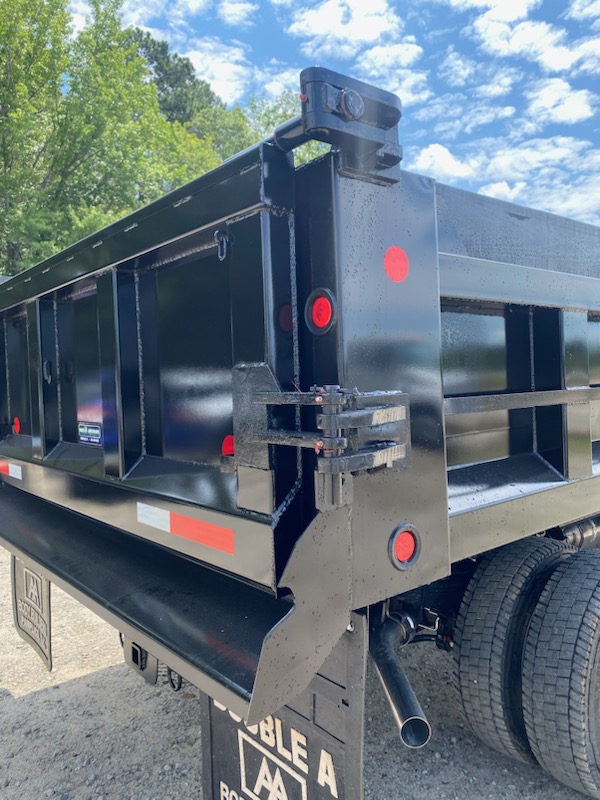

Tailgate: 2 Way - 3 Panel - Manuel - Constructed with Formed 10 Gauge, which includes Boxed Top Rail and Lower Sloping Material Deflector.

Front Wall and Cab Protector: Formed 10 Gauge and Full Width Angle Reinforcement.

Light Duty Contractor Dump Hoist

AA - 615
14,000 - 18,000 GVWR
60" - 120" CA
(1) 6" Muncie Cylinder - 15 Stroke - 2" Cylinder Rod
Muncie Direct Mount Pump
Williams Tank & Valve Combination
40 - 45 Degree Dump Angle

AA - 620
14,000 - 18,000 GVWR
60" - 120" CA
(1) 6" Muncie Cylinder - 20" Stroke - 2" Cylinder Rod
Muncie Direct Mount Pump
Williams Tank & Valve Combination
40 - 45 Degree Dump Angle

AA - 630
14,000 - 18,000 GVWR
(1) 6" Muncie Cylinder - 30" Stroke - 2 1/2" Cylinder Rod
Muncie Direct Mount Pump
Williams Tank & Valve Combination
40 - 45 Degree Dump Angle



Most Popular Options

Board Holders
1/2 Cab Shield
Electric Dump / Tethered Control
PTO Driven Dump / In-Cab Controls
Underbody Scissor Hoist
Receiver Hitch
Multi-Hitch Pintle Ball Combo
15 Ton Stationary Pintle Hitch
25 Ton Spring Loaded Hitch
Tarps (Electric / Manual Multiple Styles)
RV (7- Flat Pin) Plug
7-Pin (Round Pin) Plug
6-Pin Plug
Under-Body Toolboxes (Multiple Sizes)
Custom Basket Storage
Standard 2-Way Tailgate
3-Way Tailgate
Spreader Apron
