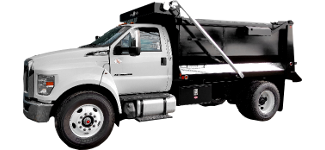

Elliptical Bodies - Medium Duty









MEDIUM DUTY ELLIPTICAL BODY SPECIFICATIONS:
CLASS F-G

Main Frame Assembly: 4" Structural Channel Crossmembers on 12" Centers and 7" Structural Longsills. Crossmembers are Gusseted and Welded to Longsills.

Floor: 3/16 - One Piece Steel Floor with 3" Seamless Radius Corners

Sides: One Piece Formed 10 Gauge with no Welded Seams. Formed 10 Gauge Post. 4x4 Box Top Rail with 8" Board Gussets.

Tailgate: 2 Way - 3 Panel - Manuel - Constructed with Formed 10 Gauge, which includes Boxed Top Rail and Lower Sloping Material Deflector.

Front Wall and Cab Protector: Formed 10 Gauge and Full Width Angle Reinforcement.

Hoist for Medium Duty Elliptical Bodies:

AA - 5389
(1) Muncie 5" - 3 Stage - 89" Stroke
Front Mount Telescopic Hoist
15 Gallon Oil Tank
Muncie G102 Direct Mount Pump
40 - 45 Degree Dumping Angle

AA - 4374
(2) Muncie 4" Telescopic Cylinders - 3 Stage - 74" Stroke
Inside Frame Mount
10 Gallon Oil Tank
Muncie - G102 Direct Mount Pump
40 - 45 Degree Dump Angle

AA - 5374
(2) Muncie 5" Telescopic Cylinders - 3 Stage- 74" Stroke
Inside Frame Mount
18 Gallon Oil Tank
Muncie G-102 Direct Mount Pump
40 -45 Degree Dump Angle
