Flatbed Dumps - Medium Duty

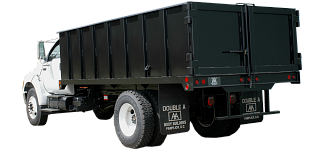

MEDIUM Duty Flatbed Dumps
Class F - G


Lengths:
10 Feet - 24 Feet

Standard Width: 8 Feet

Standard Specifications:
3/16" Smooth Steel One Piece Floor (Treadplate Steel Floor Optional)
7" Structural Channel Rear Plate
1/4 x 4 Flat Rub Rail
7" Structural Channel Long Sills
3" Structural Channel Crossmembers on 12" Centers
2"x4"x 11 Gauge Stake Pockets on 24" Centers
Mud Flaps
D.O.T. Approved Lighting
Available Features
Headboards - Formed 10 Gauge with Channel Reinforcement

40" - 44" - 56" Headboard with 12" Wingback Support
40" - 44" - 56 “ Lumber Headboard
1/2 x 1/2 Headboard
Custom Headboards are available as an option

Standard Sides - Formed 10 Gauge - Post 24" Center

Standard Sizes: 20" - 24" - 36" - 44" - 48" - 56" - 60"
42" Stake Sides
Fold Down Sides available as an option
Custom Side Height Available as an Option.

Tailgates

4 Pin - 2 Way Gate
Remove Bottom 2 Pins - Gate Spreads
Remove Top 2 Pins - Gate Lays Down
Remove all 4 Pins to Remove Tailgate Completely

Lift Out Gate
4 Holes Recessed in Floor

Grain Gate (Standard - One Grain Chute)
Hinged at Top - Lock at Bottom

One Piece Swing Around Gate
Hinged on Passenger Side. Locks on Drivers Side.

Barngate
Hinged on Right and Left Side and Locks in Middle

Flatbed Side Gate
Hinged to Front of Truck
Locks to the Rear of Truck

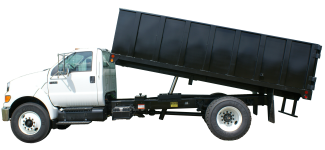

AA MEDIUM DUTY HOIST

AA - 4250
(2) 4" Muncie Telescopic Cylinders - 2 Stage - 50" Stroke
Inside Frame Mount
10 Gallon Oil Tank
Muncie - G102 Direct Mount Pump
40 - 45 Degree Dump Angle

AA - 4374
(2) 4" Muncie Telescopic Cylinders - 3 Stage - 74" Stroke
Inside Frame Mount
10 Gallon Oil Tank
Muncie - G102 Direct Mount Pump
40 - 45 Degree Dump Angle

AA - 4398
(2) 4" Muncie Telescopic Cylinders - 3 Stage - 98" Stroke
Inside Frame Mount
10 Gallon Oil Tank
Muncie - G102 Direct Mount Pump
40 - 45 Degree Dump Angle



Most Popular Options

Standard Headboard w/12” Wingback
Tapered Headboard
Tarps (Electric / Manual Multiple Styles)
1/2 Cab Shield
Standard On-Deck Stake Pockets
Outside Stake Pockets w/ Rub Rail
PTO Driven Dump / In-Cab Controls
ICC Bumper (Federal Mandate without Hitch)
Receiver Hitch
Multi-Hitch Pintle Ball Combo
15 Ton Stationary Pintle Hitch
25 Ton Spring Loaded Hitch
Recessed Gooseneck Ball
Hide-Away Ball
Tailgates (Multiple Sizes / Styles)
RV (7- Flat Pin) Plug
7-Pin (Round Pin) Plug
6-Pin Plug
Under-Body Toolboxes (Multiple Sizes)
Custom Basket Storage
Ratchet Binders and Straps (Cargo Control)
Permanent or Removable Steel Sides (Multiple Sizes / Styles)
Lumber Headboard (No Wingbacks)
